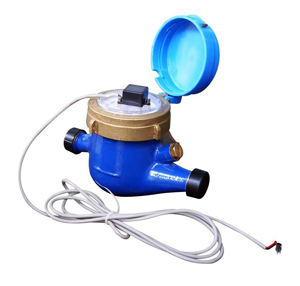

Multi Jet Domestic Type Water Flow Meter With Pulse Output

Overview Features and Benefits Certificate Product Catalog
Overview

Description : FEDREL Make Multi Jet Domestic Type Water Meter with Pulse Output Signal Pulses- The sensor is designed as a potential-free normally open contact. It is closed with frequency proportional to the flow rate by serially integrated magnet within the counter and opens itself automatically again. Typical pulse values are 10, 100 and 1000 L/Imp., depending on the meter size and mounting position. The pulse output sensor does not require its own power supply and is therefore the ideal partner for all electronics devices whose energy supply comes from a battery.
Size range : 15 & 50 MM(½” To 2”)
Accuracy Class :Class B (±2 % @ Nominal flow rate)
Product Standard : IS-779/ISO-4064
Body Material cum Standard : Brass IS-1264 Gr. DCB-2
Dial Details : Magnetic Drive, Extra Dry Dial
Protection Class : IP-68
End Details : Screwed Male Ends to BS: 21 BSP

Features and Benefits
  • Extra Dry Dial
  • Hermetically sealed register ensures that all internal parts clean and prevents fogging throughout the entire lifetime of the meter.
  • Robust copper alloy body to pass the strongest resistance tests in both static and dynamic conditions.
  • High quality engineered materials for hydraulics and register pivot ensure high reliability and durability
  • Shock –resistant material for register and closure.
  • High performance magnetic transmission ensures no part of the register is in contact with water
  • Interchangeable spare parts for easy online maintenance
  • High sensitivity, low pressure loss
  • Internal strainer, inlet strainers are standard.
  • Available for both cold and hot water.
  • 100% of the products are calibrated and all calibrations results can be provided.
Certificates

  • Sitarc
  • IP-68
  • BIS
  • FCRI
Product Catalog

Multi Jet Domestic Type Water Meter With Pulse Output
    4906 KB
Document No: 104-P
